Swirl Jaali Design for Partition: Material and Cutting Guide

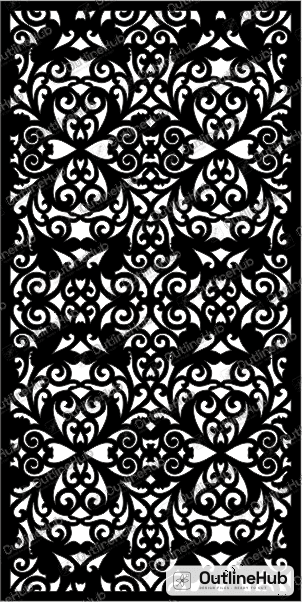

Looking for a free jaali design that looks rich but is easy to cut? This swirl jaali design is a tall rectangle panel full of curly swirls and heart shapes that repeat in a neat pattern. It works for room partition, main gate, pooja room and wall decor. In this guide we will talk about where to use it, which material and size is best, cutting settings, finishing and common mistakes. The files from OutlineHub are ready to cut, so you can start work the same day.

Where to Use This Swirl Jaali Design

This swirl jaali design fits many places in an Indian ghar and shop. The most common use is a room partition between living room and dining area. It gives privacy but still lets light and air pass. You can also use it on a pooja room door or mandir back panel, where the curly pattern looks traditional. For outside, cut it in MS sheet and fix it in a main gate or balcony grill. Shop owners use it for counter front, reception wall, restaurant divider and false ceiling panels. Many people also make small panels for wall decor and Diwali gifts.

Size Ideas for Indian Homes and Shops

The design is a 1:2 rectangle, so it scales very nicely. Popular sizes are:

Small wall decor panel: 1x2 feet. Pooja room door panel: 2x4 feet. Room partition: 3x6 feet or 4x8 feet (cut in two or three panels and join with a frame). Gate panel: 2x4 feet or 3x6 feet as per gate size.

If you go very small, like under 1 foot, the small swirls become too thin and can break. For small items, use 3mm MDF or acrylic and keep at least 9 inch width.

Best Material and Thickness for CNC Cutting

For indoor work, 6mm MDF board is the most popular and cheapest choice. For a partition, 9mm or 12mm MDF or plywood gives more strength. Acrylic sheet of 3mm to 5mm looks good with backlight, especially in black, gold mirror or white. For outdoor gates and railings, use MS sheet of 1.5mm to 3mm, or SS sheet of 1.2mm to 2mm for no rust. WPC board is also a good option for bathroom area or places with moisture.

Laser and CNC Cutting Tips

This design has a lot of small cut-outs, so cutting time will be more than a simple jaali. Some tips:

For CO2 laser on 6mm MDF, start with around 80 to 100 watt power and slow speed, then do a test piece first. Keep air assist on to avoid burning. For acrylic, use slower speed for a clean polished edge. For CNC router on MDF or plywood, use a 3mm or 4mm bit for this kind of pattern. Small inner corners will get slightly rounded, which is fine. For fiber laser or plasma on MS sheet, keep kerf in mind. Plasma kerf is wide, so 2x4 feet or bigger size works better. Cut inner shapes first and the outer border last, so the sheet does not move.

The OutlineHub file has closed vectors, so it will work smoothly in your laser or CNC software.

Finishing: Paint, PU Polish and LED Lights

After cutting, sand the MDF edges lightly. Apply primer, then spray paint or PU polish. White, gold, wooden brown and black are top choices for partitions. For MS gates, do powder coating or at least red oxide primer with enamel paint to stop rust. For a mandir or wall panel, put warm white LED strip behind the jaali. The swirl shadows on the wall look really good at night.

Common Mistakes to Avoid

Cutting too small: thin swirls break easily. No test cut: always test power and speed on a scrap piece. Wrong thickness: very thin MDF bends in big partitions. No frame: large panels need a wooden or metal frame for support. Skipping primer on metal: rust will come within months.

FAQ About This Free Jaali Design

Is this free laser cutting design okay for commercial work? Yes, you can use it to cut panels for your customers.

Which software opens the file? CorelDRAW, Illustrator, LightBurn, RDWorks and most CNC software support these formats.

Can I use it for a gate? Yes, cut in MS or SS sheet at 2x4 feet or bigger.

How long does cutting take? It depends on machine and size, but expect more time than a plain design because of many small holes.
