Star Pattern Jaali Design: Size, Material and Cutting Guide

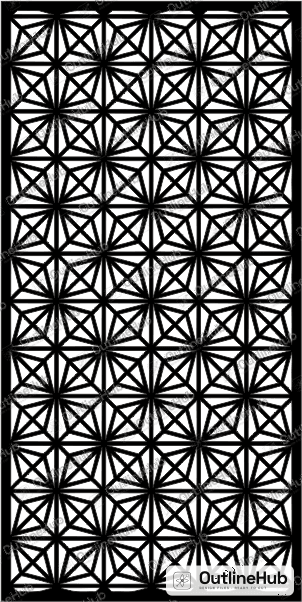

A star pattern jaali design is one of the most asked designs in laser shops and CNC workshops across India. It has repeating star shapes made with straight lines, so it looks modern but also has a traditional jaali feel. This panel is tall and rectangular, which makes it perfect for gates, partitions and railing. In this guide we will see where to use it, what size and material to pick, cutting tips and finishing ideas.

Where to Use This Star Pattern Jaali Design

This design works in many places in an Indian ghar or shop. The most common use is the main gate grill, where the jaali panel is fixed inside an MS frame. It also looks very good as a room partition between living room and dining area. Many customers use it for balcony screens, so air and light come in but privacy stays. You can also use it for staircase railing panels, false ceiling panels with lights behind, pooja room side panels, office cabins, restaurant walls and shop front decor. Because the pattern repeats evenly, you can join two or three panels side by side for a big wall without the design looking broken.

Best Size Ideas for Indian Homes and Shops

The panel is in 1:2 ratio, so the easiest sizes are 2x4 feet, 3x6 feet and 4x8 feet. For a single gate leaf, 3x6 feet is common. For room partitions, use two or three 2x6 or 3x7 feet panels. For balcony railing, you can cut the panel into a 3 feet height and repeat it along the length. For small decor like wall panels or window inserts, 1x2 feet works fine, but do not go too small, because the lines become very thin and break easily. A good rule is that the thinnest line should not be less than about 4mm on MDF and 3mm on MS sheet.

Best Material and Thickness for CNC Cutting

For outdoor gates and railing, MS sheet of 1.5mm to 3mm is the most used. SS sheet 1mm to 2mm is good where you want no rust, like near the sea or for premium homes. For indoor partitions, 6mm, 9mm or 12mm MDF board is cheap and easy to paint. Plywood 12mm with laminate or veneer gives a wooden finish. Acrylic sheet 3mm to 5mm looks nice with backlight. Avoid very thin MDF like 3mm for big panels because it will bend and the jaali lines can crack.

Laser and CNC Cutting Tips

For MS sheet, a fiber laser of 1kW to 3kW cuts this design easily. Start with the inner cuts first and the outer border last, so the sheet does not move. For a CO2 laser on 6mm MDF, power around 70 to 80 percent and slow speed gives clean edges, but always do a test cut first because every machine is different. Keep kerf in mind, usually 0.1mm to 0.3mm for laser and more for router. On CNC router for MDF, use a 3mm or 4mm bit and keep tabs so small pieces do not fly. The files from OutlineHub are ready to cut, with closed vectors, so you do not waste time cleaning lines.

Finishing Ideas: Paint, PU and Powder Coating

For MS gates, powder coating in black, grey, golden or brown looks best and lasts long. Metal can also get a gold or copper finish for premium homes. For MDF, first apply primer, sand lightly, then use PU paint in white, black or golden. Plywood looks good with PU polish in natural wood colour. For partitions and ceiling, fix LED strip light behind the jaali, the star shapes give a very nice shadow on the wall at night.

Common Mistakes to Avoid

Many people scale the design too small, which makes lines thin and weak. Some forget to keep a border, so the panel has no strength for fitting. Using low quality MDF causes rough edges and burning. In metal, high heat on thin sheet can warp the panel, so cut in proper order. Also check frame size before cutting, so the jaali fits the gate without extra welding. Always take a small test cut of one star block before cutting the full sheet.

FAQ

Q: Can I use this star pattern jaali design for main gate? A: Yes, cut it in MS or SS sheet and fix it in a strong frame with powder coating.

Q: What is the best MDF thickness for partition? A: 9mm or 12mm MDF is best for partitions, 6mm is fine for wall decor.

Q: Can I resize the file? A: Yes, the vector file from OutlineHub can be resized, just keep the line thickness strong.

Q: Will it work on CNC router? A: Yes, it works on both laser and CNC router, use a small bit for router.

You can download this star pattern jaali design instantly from OutlineHub and start cutting today.
