Geometric Jaali Design: Material, Size and Cutting Guide

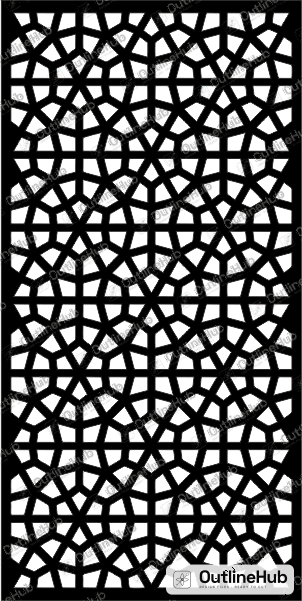

This geometric jaali design is one of the most useful panels a laser shop or CNC workshop can keep ready. It has a repeating star and flower pattern with thick bars, inside a tall rectangle frame. Customers like it because it looks rich but stays simple. Best part, it is a free laser cutting design from OutlineHub, so you can start cutting today and show it to your customers.

Where to Use This Geometric Jaali Design

Indian homes use jaali almost everywhere now. This panel fits very well in a room partition between hall and dining area. It also works as a mandir jaali in the pooja room, behind the idols with a light. Many people use it for balcony railing, staircase side panels and main gate inserts. In shops and offices, it looks good as a reception wall panel, cabin partition or false ceiling piece. Restaurants and cafes also ask for this kind of geometric pattern for walls and window covers.

Size Ideas for Indian Homes and Shops

The design is in a 1:2 ratio, so it fits standard sheet sizes easily. Some common sizes:

2x4 feet for pooja room doors, small partitions and wall decor. 3x6 feet for room partitions and balcony panels. 4x8 feet for full sheet work, gate grills and big office partitions.

If you need a wider partition, put two or three panels side by side. The pattern repeats evenly, so the joint looks neat. For small sizes like 1x2 feet, check that the bars do not become too thin.

Best Material and Thickness for CNC Cutting

For indoor work, 6mm MDF board is the most common choice. It is cheap, cuts clean and takes paint well. For a strong partition, go for 12mm MDF or 12mm plywood. Acrylic sheet of 3mm to 5mm looks very nice with LED lights behind it, good for mandir and shop display. For main gate and outdoor railing, use MS sheet of 1.5mm to 3mm on plasma or fiber laser. For a premium look, SS sheet of 1mm to 2mm with gold or rose gold finish is popular in Indian homes now.

Laser and CNC Cutting Tips

For CO2 laser on 6mm MDF, start around 70 to 80 percent power with slow speed, and do a small test cut first. Every machine is different, so note your own settings. Keep air assist on to reduce burning on edges. Kerf is usually around 0.1mm to 0.2mm on laser, so the thick bars in this design will not get weak. On CNC router, use a 3mm or 4mm flat end bit for MDF and keep tabs so pieces do not move. For fiber laser on MS or SS sheet, use proper nitrogen or oxygen as per thickness. The files from OutlineHub are ready to cut, with closed paths, so you do not waste time fixing lines.

Finishing Ideas: Paint, PU and Powder Coating

MDF jaali looks best with PU polish or duco paint. White, cream and wooden shades sell the most. Sand the edges lightly and apply primer before paint. For mandir panels, gold or wooden brown finish is popular, and you can add warm LED strip behind. For MS gate jaali, always do powder coating so it does not rust; black, grey and brown are common choices. SS panels can get PVD coating in gold or black.

Common Mistakes to Avoid

Do not scale the design too small, or the bars become thin and break. Do not skip the test cut, especially on new material. Do not cut MDF without air assist, edges will burn black. Do not forget a solid frame border when fitting in a gate. For partitions, give proper wooden or metal frame so the panel does not bend over time.

Get This Free Laser Cutting Design

This free laser cutting design is good for shop owners who want ready stock designs to show customers. Cut a sample in MDF, paint it, and keep it in your shop. Customers will order it for partition, mandir or gate in different sizes.

FAQ

Q: Which file formats are included? A: You get CDR, AI, DXF, SVG and PDF, so it works in CorelDraw, LightBurn and most CNC software.

Q: Can I use this design for main gate? A: Yes, cut it in MS sheet and do powder coating. It is strong because the bars are thick.

Q: What is the best size for room partition? A: 3x6 feet or 4x8 feet panels work best, in 12mm MDF or plywood.

Q: Can I cut it on acrylic? A: Yes, 3mm to 5mm acrylic works well, and looks great with LED lights.

You can download this free laser cutting design instantly from OutlineHub.
