Floral Jaali Design for Partition Laser Cutting

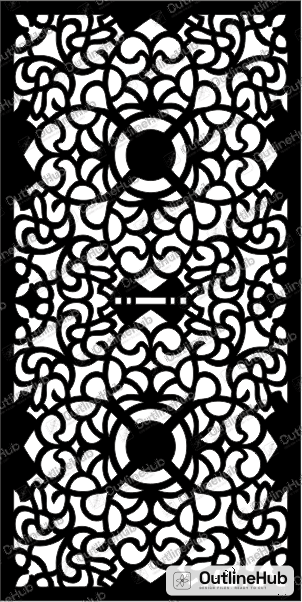

A floral jaali design for partition is one of the most asked items in any laser cutting shop in India. Customers want something that looks rich but still lets light and air pass. This design has curly flower shapes, two round circle points with a cross, and a small bar in the middle. It looks full and balanced from far, and nice and detailed from close. Best part, this is a free laser cutting design, so you can download it and start work today. In this guide we will talk about where to use it, what size to cut, which material is best, cutting settings, finishing and mistakes to avoid.

Where to Use This Floral Jaali Design for Partition

This jaali fits in many places in an Indian ghar and in shops. The most common use is room partition between living room and dining area. Many people put it as a side panel next to the mandir in the pooja room, because the round circles give a soft and holy look. You can also use it as a balcony screen, a staircase railing panel, a false ceiling insert, or inside a main gate grill frame. Shops, salons, restaurants and offices use it as a reception back wall or as a divider between cabins. Since the pattern is same on top and bottom, it also works well when you join two or three panels side by side.

Best Size for Indian Homes and Shops

The design is a tall rectangle, roughly 1:2 ratio. So the sizes that work best are 2x4 feet, 2.5x5 feet and 3x6 feet. For a full room partition, many customers order three panels of 2x6 feet fitted in a wooden or MS frame. For a pooja room side panel, 1.5x4 feet is usually enough. For wall decor or a small window cover, you can cut it at 1x2 feet, but do not go smaller than that, because the thin curly lines will become too weak. If customer wants a very small size, cut it on acrylic sheet rather than MDF, because acrylic holds thin parts better.

Best Material and Thickness for CNC Cutting

For indoor partition, 6mm MDF board is the most popular choice. It is cheap, cuts clean on CO2 laser, and takes paint very well. For a stronger panel, use 9mm or 12mm MDF on a CNC router, but then keep the size big, at least 3x6 feet, so the gaps are wide enough for the bit. Plywood of 6mm to 8mm is also good if customer wants natural wood look. Acrylic sheet of 3mm to 5mm gives a modern look, especially in black, white or gold mirror acrylic. For main gate, balcony and outdoor use, go with MS sheet of 1.5mm to 2mm or SS sheet of 1.2mm to 1.5mm, cut on fiber laser or CNC plasma. SS 304 is best near sea side areas because it will not rust.

Laser and CNC Cutting Tips

On a 100W or 150W CO2 laser, 6mm MDF usually cuts at around 10 to 15 mm per second with 70 to 80 percent power. Always do a small test cut first, because every MDF board is little different. Keep air assist on full, otherwise the edges will burn and turn dark brown. For acrylic, use lower speed and good air to get a polished edge. On fiber laser for MS sheet, use oxygen gas, and for SS sheet use nitrogen for a clean silver edge. Keep kerf in mind, it is around 0.1mm to 0.2mm on laser and much more on plasma. If you are cutting on plasma, scale the design to 3x6 feet or bigger so small gaps do not melt together. The files from OutlineHub are ready to cut, with closed vectors, so you do not waste time fixing broken lines.

Finishing Ideas: Paint, PU Polish and LED Lights

Finishing makes a big difference in what price you can charge. For MDF, first apply a sealer or primer, sand lightly, and then use spray paint. White, ivory, gold and wooden brown are most liked colours in Indian homes. For plywood, PU polish gives a rich wooden look. For MS sheet, powder coating in black, brown or antique gold lasts long and looks premium. SS sheet can be left in matt or mirror finish, or given PVD gold coating. For a pooja room or reception wall, put warm LED strip light behind the panel. The round circle parts of this design glow nicely with back light and customers love it.

Common Mistakes to Avoid

The first mistake is cutting too small. The curly lines in this jaali are thin, so small sizes break easily. Second mistake is using cheap low density MDF, which gives rough edges and breaks while handling. Third is not leaving a border. This design already has a solid border, so do not remove it, it gives strength for fitting. Fourth, many shop owners forget to remove the small dropped pieces before taking the sheet out, and the panel gets scratched. Fifth, in metal, people skip primer before paint and the panel rusts within months. Take care of these points and your work will look professional.

FAQ About This Free Laser Cutting Design

Is this design really free? Yes, this is a free laser cutting design and you can use it for your shop orders.

Which file formats will I get? You will get common formats like CDR, AI, DXF, SVG and PDF, so it works with CorelDRAW, LightBurn, RDWorks and CNC software.

Can I use this floral jaali design for partition on a CNC router? Yes, but cut it at 3x6 feet or bigger and use a small bit like 3mm or 3.175mm.

Can I use it for main gate? Yes, cut it on MS or SS sheet and fit it inside a gate frame with powder coating.

This floral jaali design for partition is easy to sell, easy to cut and fits almost every Indian home and shop. You can download this free laser cutting design instantly from OutlineHub.
